Product Details:
|
| Meterial: | Cast Iron | Name: | Hydraulic Motor |
|---|---|---|---|
| Model: | BMK6 | Appliion: | Agricultural Machinery |
| Type: | High Pressure, Without Drain | Warranty: | 12-18 Months |
| Other Name: | Oribital Motor | Displacement: | 623cc |
| Highlight: | Char Lynn orbit hydraulic motor alogue,Lynn 6000 orbit hydraulic motor alogue,BMK high torque low speed |
||

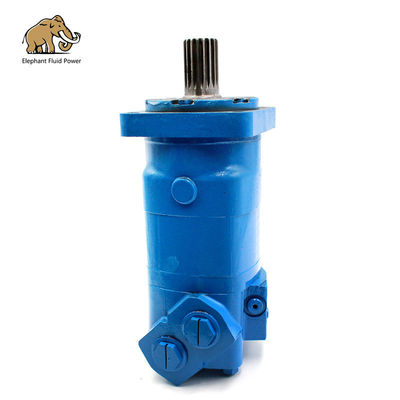

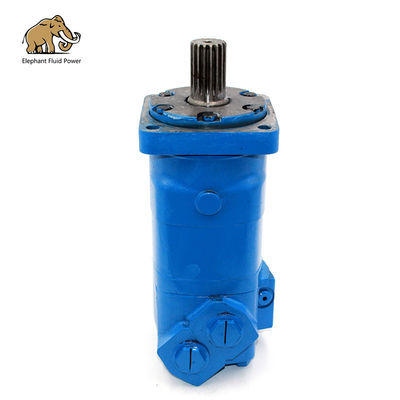

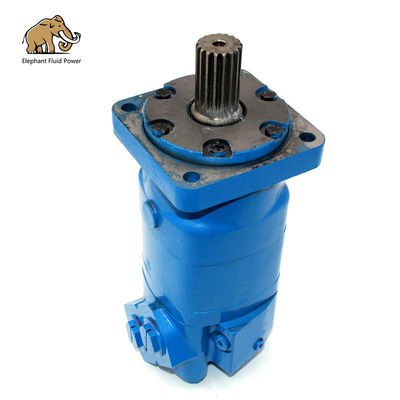

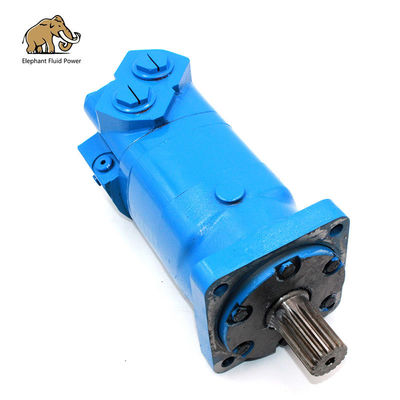

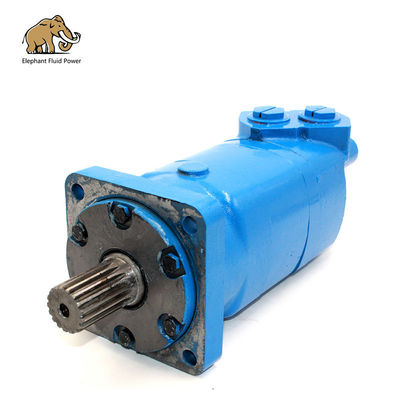

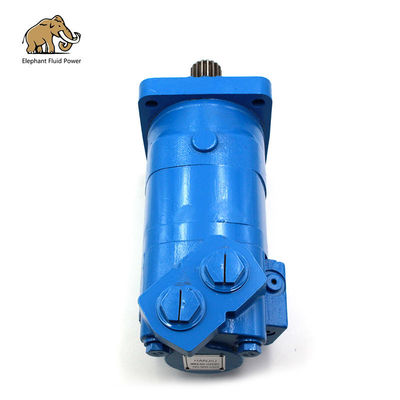

BMK6 Hydraulic Orbit Motor Char Lynn 6000 Geroler Hydraulic Motor / Low Speed High Torque
Product details:
BMK6 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty appliions such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
Appliion:
Specifiions
Competitive Advantage
| High efficiency |
| High starting torque |
| Robust and compact design |
| High radial and axial bearing capacity |
| For appliions in both open and closed loop hydraulic systems |
| Suitable for a wide variety of hydraulics fluids |
| Smooth running over the entire speed range |
| Constant operating torque over a wide speed range |
| Long life under extreme operating conditions |
| High return pressure without the use of drain line (High pressure shaft seal) |
At present, most popular Brands in Hydraulics are Danfoss, Char Lynn, M+S, HANJIU, each with its own merits, however the reason why more and more clients choose HANJIU is because it has obvious advantages over other brands in terms of delivery, service, quality and profit rate.
