Product Details:
|
| Material: | Ductile Iron, Steel, Bronze And Others | Name: | Hydraulic Steering Unit |
|---|---|---|---|
| Model: | 101S-2-250-16-E | Quality: | High Quality |
| Original: | Made In China | Appliion: | Tractor |
| Suit For: | Massey Ferguson , | Dispalcement: | 250cc |
| Highlight: | Massey orbitrol steering valve operation,Agriculture orbitrol steering valve operation,Massey orbital steering valve sizing |
||

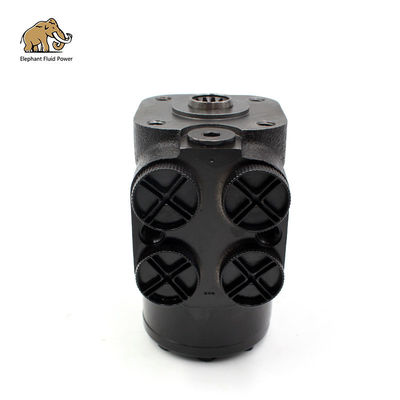

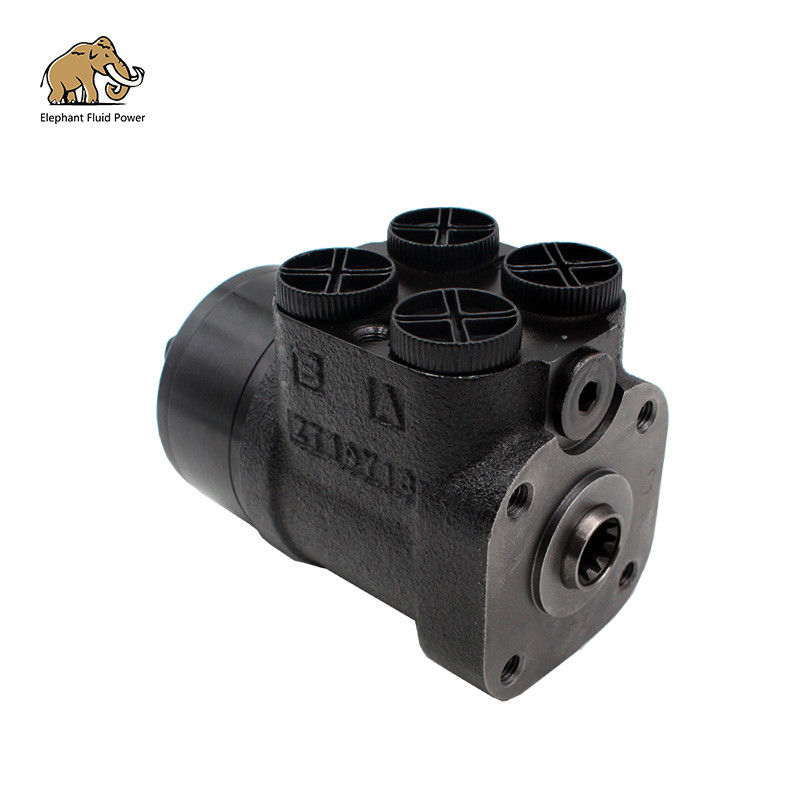

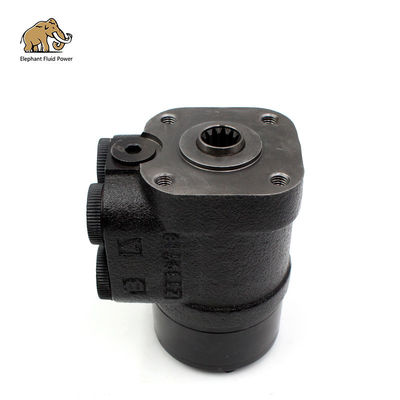

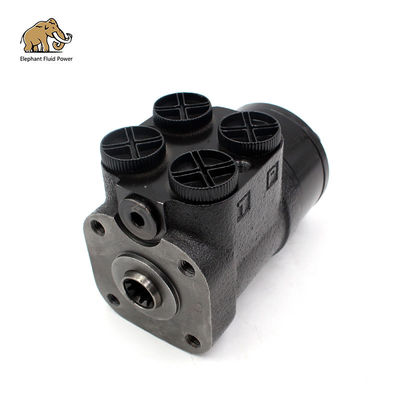

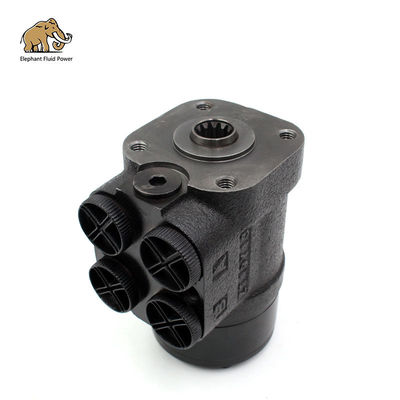

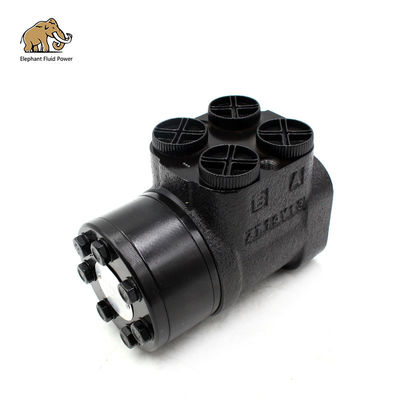

101S-2-250-16-E Orbitrol Steering Unit Hydraulic Steering Unit For Agriculture Tractor Massey Ferguson ,
Product details:
101s ON/OR for hydraulic systems where oil is supplied by a fixed-displacement pump. The range is wide and flexible, characterised by: • Low steering torque, 0.5 Nm to 1.8 Nm in normal steering situations • Low noise level and wide control range • One or several built-in valve functions: pressure relief, shock, suction, and/or nonreturn in pump connection • Port threads as required, to DIN, ISO, SAE or JIS standards.
101s is available in versions “Open Center Reaction” or “Open Center Non Reaction” (OR or ON) and with displacements from 40 to 500 cm3 /rev. 101s is also available in a “Closed Center Non Reaction” (CN) type. CN steering units are for constant-pressure systems with variable pump flow. In neutral position, the CN unit shuts off oil flow between pump and tank. CN units are available with displacements from 50 to 400 cm3 /rev.
Characteristic Features
1. 101s Orbital Steering Valve is with relief valve ,suction valve, inlet check valve intergrated.
2. Different valve can be assembled freely,compact ,more convenient ,fitting.
3. European and American standards.
4. Replace (OSPC), M+S (HKUS) series.
5. Orbital Steering 101s match with Tractor OEM Part Number.
Specifiion
| HANJIU | 101s |
| OSPC | |
| M+S | HKUS |
| Eaton | 401-1 |
| Parameters | Series 101S-*-***-**-* |
||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Appliion:
