Parker Pump Replacement 332/F9030 (36/29 Cc/Rev) For JCB 3CX 4CX Backhoe Loader

Parker Pump Replcament 332/F9030 (36/29 Cc/Rev) For JCB 3CX 4CX Backhoe Loader Repair Maintain Parts

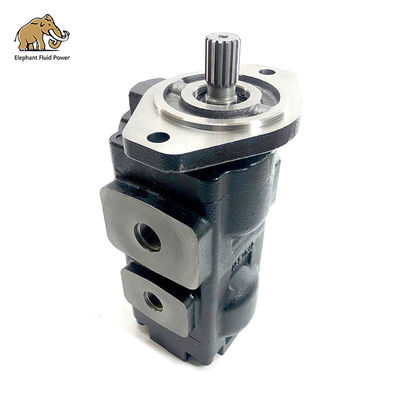

332/F9030 (36/29 cc/rev) for JCB 3CX 4CX Backhoe Loader

Elephant Fluid Power Co.,Ltd can supply 332/F9030(36/29 cc/rev) for JCB 3CX 4CX  Backhole loader,Oem quality as Parker,is your best choice for JCB Hydraulic pump replacement.

Technical Data:

• Rotation: Clockwise (looking from shaft end)
• 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
• SAE B 2 hole mounting flange
• Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
• Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
• Single 2” SAE flange inlet
• Front pump outlet: 1 1/16”-12 UNF threaded
• Rear pump outlet: 7/8”-14 UNF threaded
• Maximum working pressure on front pump: 250 bar
• Maximum working pressure on rear pump: 275 bar
• Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

• 20/925580 - 332/F9030

We offer you high-quality hydraulic pumps for JCB construction machines.
Each of the pumps is characterized by reliability and durability.
Machine models: 3CX, 4CX.


Each pump we sell has an individual flow chart under a load of about 150 bar.
The test consists in simulating the conditions in which the pump works on a daily basis (high loads, pressure jumps)
As a result, the customer can be sure that he is installing a proven product that has passed the test.

More JCB pump available as below:

Our products have been exported to more than 70 countries and area,we win a good reputation based on our quality and good services.

Elephant fluid power has become a world famous brand,that provide high quality,reazonble price,good services,is your first choice partners.

You can realize one-stop purchasing for Jcb Hydraulic pumps and other hydraulic components.
