Product Details:
|
Material: | Cast Iron | Application: | Hydraulic Repair |
---|---|---|---|
Warranty: | 12 Months | Quality: | OEM Quality |
Lead Time: | 7-10 Days | Packing: | Carton Box Wooden Case |
Highlight: | 45 Axial Piston Pump,ERR147 Axial Piston Pump,Open Circuit Axial Piston Pump |

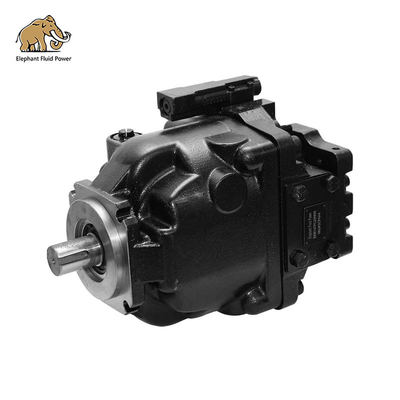

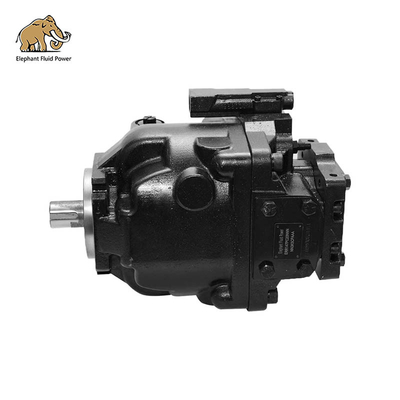

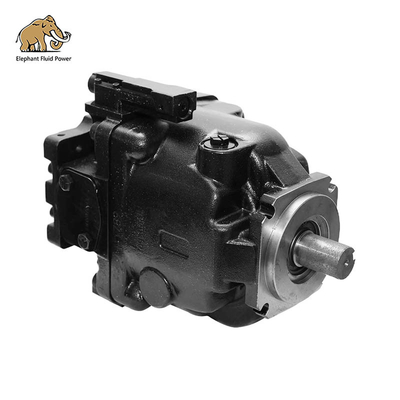

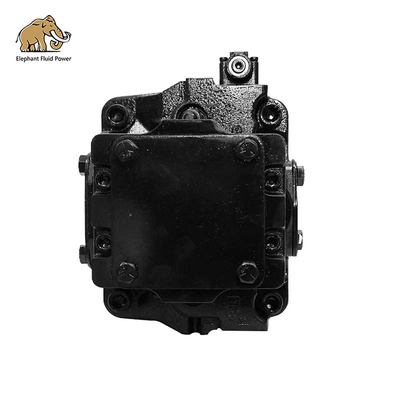

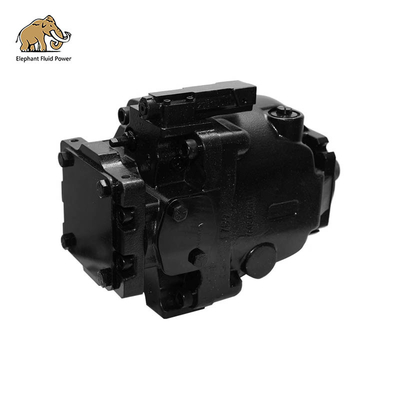

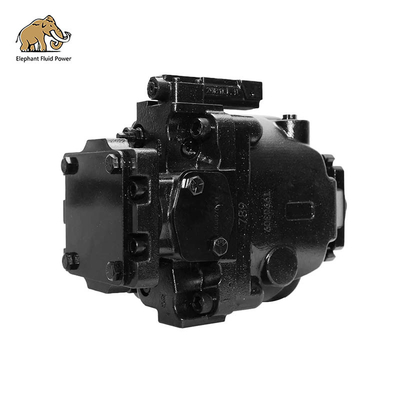

OEM quality ERR147 ER Series 45 Axial Piston Pump Open Circuit with factory price
Elephant Fluid Power makes OEM quality ERR147 ER Series 90 Axial Piston Pump Open Circuit with factory price,the same quality as original,
good price,fast lead time,one year warranty since sales,is your first choice for hydraulic replacements.
Technical data:
Open Circuit Pumps Series 45
Technical specifications | |||||
E | |||||
Company | 100B | 130B | 147C | ||
Maximum displacement | cm³[in³] | 100[6.1] | 130[7.93] | 147[8.97] | |
Working speed | Minimum | min-1(rpm) | 500 | 500 | 500 |
Continued | 2450 | 2200 | 2100 | ||
Maximum | 2880 | 2600 | 2475 | ||
Working pressure | Continued | bar [psi] | 310[4500] | 310[4500] | 260[3770] |
Maximum | 400[5800] | 400[5800] | 350[5075] | ||
Flow rate at rated speed (theoreticalvalue) |
I/min [USgal/min] |
245 [64.7] |
286 [75.6] |
309 [81.6] |
|
Input torqueat maximum displacement at 49°C[120°F] (theoretical value) | N*m/bar [lbf*in/1000 psi] |
1.592 [972] |
2.07 [1263.6] |
2.341 [1428.8] |
|
Moment of inertia of intemal rotating components | kg*m2 [slug*ft2] |
0.0128 [0.00944] |
0.0128 [0.00944] |
0.0128 [0.00944] |
|
weight | Axial oil port | kg (lb) | 51.3[113] | ||
Radial oil port | 54.9[121] | ||||
External load on the spindle | (Me) Extermal torque |
N*m[lbf*in] | 455[4027] | 360[3186] | 396[3505] |
Axialforce push,pull | N[lbf] | 2846[640] | 1735[390] | 2113[475] | |
Installation flange load torque | Vibration (continuous) |
N*m[lbf*in] | 1920[17000] | ||
Impact (maximum value) |
6779[60000] |
Our main hydraulic pumps and parts models:
Rexroth | A2F12/23/28/55/80/107/160/200/225/250/335/500 |
A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500 | |
A7V28/55/80/107/160/225/250/355/500/1000 | |
A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500 | |
A4VSO45/71/125/180/250/500/1000 | |
A4V40/56/71 | |
A4VG28/40/45/50/56/71/90/125/140/180/250 | |
A4VTG71/90 | |
A10VSO10/16/18/28/45/63/71/85/100/140 | |
A10VG18/28/45/63 | |
A11VO60/75/95/130/145/160/190/250/260 | |
Kawasaki | K3SP36C |
K3V63DT/112DT/140DT/180DT/280DT | |
K3VL28/45/60/80/112/140/200 | |
K3VG63/112/180/280 | |
K7V63/100 | |
K7VG180/265 | |
K5V80/140/160/200 | |
NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270 | |
NX15 | |
NVK45 | |
KVC925/930/932 | |
M2X55/63/96/120/128/146/150/170/210 | |
M5X130/150/173/180/500 | |
MX50/80/150/173/200/250/450/500/530/750 | |
KAYABA | MAG150/170 |
KYB87 | |
MSG18P/27P/44P/50P | |
MSF series | |
Komatsuu | HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650 |
Libherr | LPVD 35/45/64/75/90/100/125/140/165/225/250 |
FMV075/100 | |
LMF(V)45/64/75/90/100/125/140 | |
Toshiba | PVB80/92 |
PVC80/90 | |
SG 015/02/025/04/08/12/15/17/20/25 | |
Linder | HPV55/75/105/135/165/210/280 |
HPR75/90/100/130/160 | |
MPR28/45/63/71 | |
HMR75/105/135/165 | |
HMF28/35/50/ | |
BPV35/50/70/100/200 | |
B2PV35/50/75/105/140/186 | |
BMF35/55/75/105/140/186/260 | |
BMV35/55/75/105/135 | |
BPR55/75/105/140/186/260 | |
Sauer | PV90R(L)(M)030/42/55/75/100/130/180/250 |
PV42-28/41/51 | |
SPV15/18 | |
KRR(LRR)025C/030D/038C/045D | |
MR(MS)070/089/227/334 | |
Eaton | 3321/3331 |
4621/4631 | |
5421/5431 | |
78461/78462 | |
Vicker | PVE12/21/45 |
TA19/MFE19 | |
PVM 018/020/045/050/057/063/074/081/098/106/131/141 | |
PVH 57/74/98/131/141 | |
PVB 5/6/10/15/20/29/45/90 | |
Yuken | A10/16/22/37/40/45/56/70/90/100/125/145/220 |
A3H16/37/56/71/100/145/180 | |
Parker | PVP16/23/33/41/48/60/76/100/140 |
PV 016/020/023/028/032/040/046/063/080/092/140/180/270 | |
P2/3-060/075/105/145 | |
PAVC 33/38/65/100 | |
Hitachi | HPV050/102/105/118/135 |
HMGC16/32/48 | |
HMGF35/36/38/57 | |
Tokiwa | MKV23/33 |
Uchida | A10VD17/23/28/40/43/71 |
AP2D12/14/18/21/25/28/36/38/42 | |
A8VO55/59/80/86/107/115/172 | |
Nachi | YC35-6 |
PVD-2B-32/34/36/38/40/42/45/50 | |
PVD-3B-54/56/60/66 | |
PZ-6B-180/220 | |
PVK-2B-50/505 | |
PZ-4B-100 | |
PVD-00B-14/16P | |
PVD-1B-23/28/32/34 | |
Hawe | V30D95/140/250 |
V60 | |
Italy Sam | HCV50/70/90/100/125 |
H1V55/75/108/160/226 | |
H2V55/75/108/160/226 | |
H1C55/75/108/1 |
Competitive Advantage:
|
|
|
|
|
Pump & Motors Spare Parts:
REXROTH series |
SAUER DANFOS S series |
LINDE series |
CA T series |
KAWASAKI series |
NACHI series |
LIEBHERRR series |
KAYABA series |
PARKER series |
OILGEAR series |
YUKEN series |
VICKERS series |
DENISON series |
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our company:
Elephant Fluid Power Technical team has many years of operation and service experience,Provide customers with professional hydraulic system solutions,Quality assurance of quality products,We have many years of experience in purchasing and sales to prevent counterfeit and shoddy products,1-7 days, fixed sales engineer, agreement specific delivery period,Years of industry experience, sales, repairs, commissioning, maintenance,Super fast one-stop professional service,Provide technical response within 2 hours of standard warranty,Effectively guarantee the quality of hydraulic products,Worry-free delivery time 1300 kinds in stock,One-stop service, directly with the manufacturer,Provide complete hydraulic system solutions,Comprehensive guidance to provide technical services within 1 working day,Rigorous processing and excellent quality.
