Product Details:
|
| Advantage: | Good Quality And Delivery Fast | Compatible: | 100% Replacement For Original |
|---|---|---|---|
| Delivery: | 3-5 Days | Horse Displacement:: | 1,080cm3 |
| Refueling Amount: | 17dm3 | Price: | More Favorable Price |
| Highlight: | 12m3 Concrete Mixer Trucks Reducer,Replacement PLM-9 Reducer,ZF PLM-9 Reducer |
||

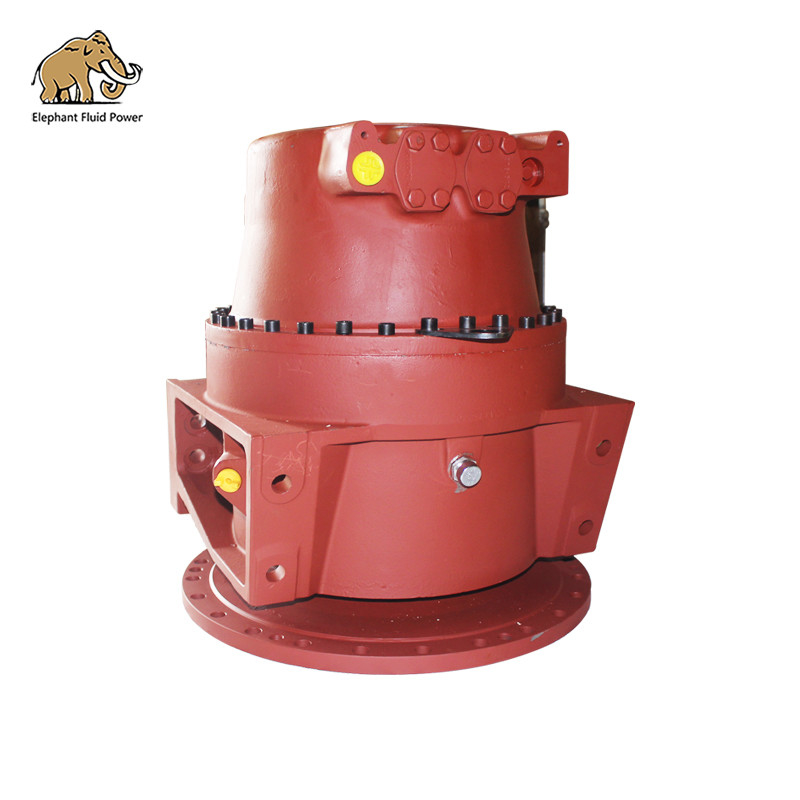

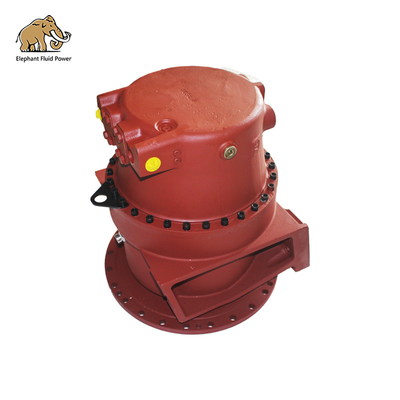

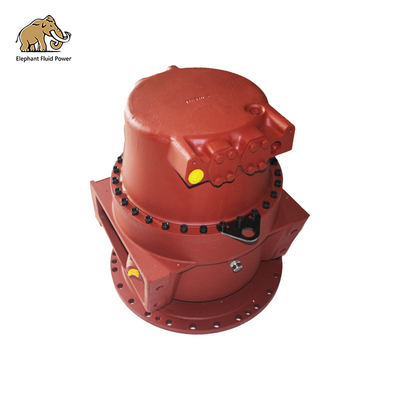

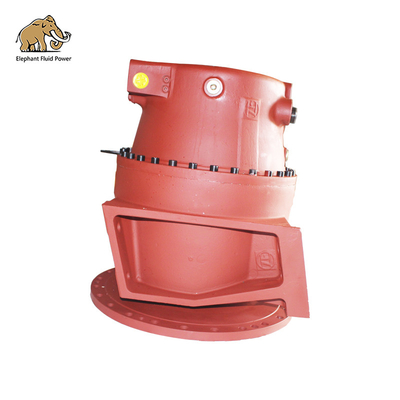

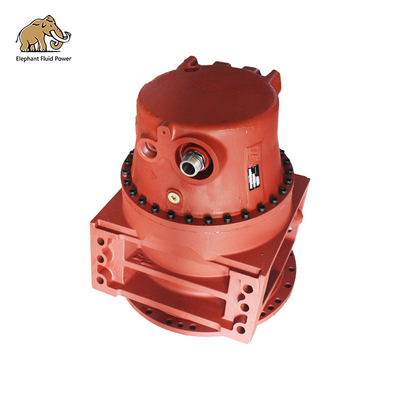

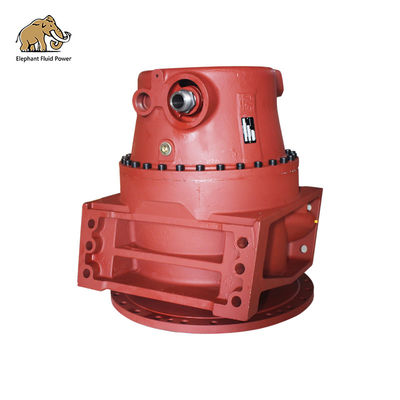

Elephant Fluid Power makes ZF PLM-9 Reducer For 12m³ Concrete Mixer Trucks Replacement,same quality as original,good price,fast lead time,one year warranty since sales,we can save your time and money,is your best choice for concrete pump and mixers parts.
Technical data:
| Model | P-3301 | P-4300 | P-5300 | P-7300 | PLM-7 | PLM-9 |
| Max Mixing capacity | Class up to 8m3 | Class up to 10m3 | Class up to 12m3 | Class up to 12m3 | Class up to 8m3 | Class up to 12m3 |
| Ratio | 141 | 135.3 | 135.3 | 144.3 | 7.2 | 6.94 |
| Output torque max | 54,000 Nm | 60,000 Nm | 72,000 Nm | 80,000 Nm | 48,000 Nm | 65,000 |
| Install angle max | 15° | 15° | 13.5° | 13.5° | 15° | 12° |
| Max input rpm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Max output rpm | 15 | 18 | 18 | 17 | 18 | 17 |
| Weight | 258 | 340 | 345 | 350 | 295 | 375 |
| Oil quantity dm3 | 8 | 11.5 | 11.5 | 11.5 | 17 | 21.5 |
| Max misalignment of flange | +/-6° | +/-6° | +/-6° | +/-6° | +/-6° | +/-6° |
Elephant fluid power Provide Putzmeister, Schwing, Sebhsa, Sermac, Daf, Man, Mercedes-Benz. Z F/PMP/SAUER/BONFIGLIOLI and other supporting reducers and accessories.
The reducer, motor and pump are manufactured by Elephant fluid Power in China and are responsible for the post-support, 100% replacement of the original products. The warranty is 12 months.
Concrete Pump Spare Parts:
Auger Motors 470cc, 500cc,750cc
Hydraulic Piston Pumps A7VO, A11VO, A11VLO, A10VSO,A4VG,A4VSO,A2FO Series
Gear Pump, Charge Pump
Truck Mixer Spare Parts:
Hydraulic Piston Pumps & Motors A4VTG, PV22, PV23, A2FM, Eaton 54,46 Series
Gearbox: PMB7.5,PMP7.5sp Reducer,PMB 7.1R 130 Reducer,Z F P3301 Reducer ,CML10 Reducer CML16 Reducer,Z F PLM-9 Reducer PLM-7 Reducer, P4300 Reducer,TOP P90S Reducer,DD33 Reducer.
In stock and fast delivery.
Q:What Is our Main Application?
1.Hydraulic pump
2.Hydraulic Motor
3.Concrete Pump and Mixer
4.Hydraulic parts
Q:What is the payment terms?
A:Full order :30%as deposit , the balance before shipment;small orderlsample order: full payment in advance
Q:Do you support customized products?
A: Yes, it supports customized brands and codes, colors
Q:What is our main export market?
Europe (41.7%): Italy, Germany, Britain, France,Netherlands, Greece,Spain, Finland, Czech Republic, Russia,Poland Asia (40.5%): China,
South Korea, Singapore, India,Turkey, Iran, Vietnam, Saudi Arabia, Syria,lsrael,Lebanon Us (7%)
Q:How long is Guarantee?
A:1 year guarantee.
Elephant Fluid Power has more than 20 years of hydraulic production and maintenance history. With its own professionalism, excellent product quality, fast delivery time, and good after-sales service, we have customers in more than 80 countries and regions in the world. We care about customers, develop together with customers, make profits together, and create the best tomorrow in the hydraulic industry together.
We will be your best partner and friends in hydraulic business line,welcome to enquiry.
