German ZF series P3301, P4300, P5300, P7300, P7500, PLM-7, PLM-9 Reducer for Concrete Truck Mixer Replacement

ZF mixer truck reducer PLM7, PLM9, P3301, P4300, P5300, P7300, P7500 high-power mixer truck reducer In order to meet the different needs of customers and provide more options, RTR developed and launched the P series high-power mixer truck reducer, It can meet the performance requirements of the concrete mixer truck with a maximum drum mixing capacity of 12m3.

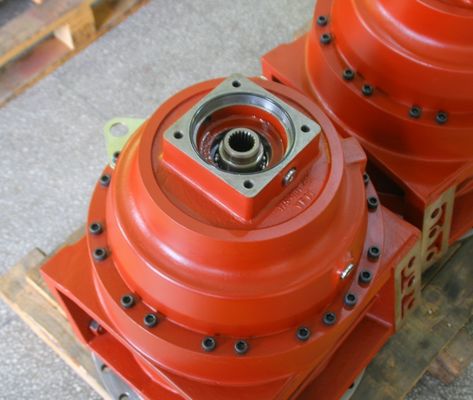

The P series mixer truck reducer consists of a basic two-stage planetary gearbox and is driven by a hydraulic motor connected to a standard SAE flange. The P series can also provide advanced technology and economy, reliable operation, low maintenance and wear resistance, Even running under extreme conditions is equally outstanding.

Specifiions of P3301, P4300, P5300, P7300, P7500, PLM-7, PLM-9

If you are thinking of replacing your concrete mixer truck or concrete pump truck with a higher speed and more stable hydraulic system, then Elephant Fluid Power high-quality hydraulic equipment definitely meets your hydraulic system performance requirements.

ELEPHANT Fluid Power is a hydraulic power expert integrating professional concrete mixer (pump truck) hydraulic system supporting, maintenance and spare parts supply.

Technical specifiions:

Model: PLM-7 Roller volume: Roller maximum installation angle: 15-12 Horse displacement: 1,080cm3 1,450cm3 Total reduction ratio: i=7.20 Output torque: 4,000Nm 48,000Nm Reducer weight (without oil): 295kg Refueling amount: 17dm3

Model: PLM-9 Roller volume: Roller maximum installation angle: 12-11 Horse displacement: 1,450cm3 1,450cm3 Total reduction ratio: i=6.94 Output torque: 54,000Nm 60,000Nm Reducer weight (without oil): 375kg Refueling amount: 21.5dm3

Model: p3301 Roller volume: Roller maximum installation angle: 15-12 Maximum output speed: 2,500 1/min Total reduction ratio: i=141.0 Output torque: 42,000Nm 48,000Nm Reducer weight (without oil): 242kg Refuel Quantity: 7.5dm3

Model: p4300 Drum volume: Drum maximum installation angle: 12 Maximum output speed: 2,500 1/min Total reduction ratio: i=135.3 Output torque: 54,000Nm Reducer weight

In Elephant Fluid Power, you can search for various hydraulic components of concrete mixer trucks and concrete pump trucks, such as PMP series, ZF series, Bonfiglioli series, TOPUNIOU series, DAKIN series reducers, these series of concrete mixer trucks, The reducer of the concrete pump truck is not only of high quality, but also of rich models. If you need more personalized customization, we have a professional team to design related products for you.

Buy hydraulic components for concrete mixer trucks and concrete pump trucks at Elephant Fluid Power, and you will definitely earn. The hydraulic motors of concrete mixer trucks and pump trucks have Eaton series, Rexroth series, PMP series, KYB series and so on for you to choose from.

If you are interested in our products, please contact us, we will provide more details, not only our stock, the best price quotation, but also alternative optional products which match this, and other items popular in your marketing.

We believe one trial will brings us a good and long-term cooperation.
