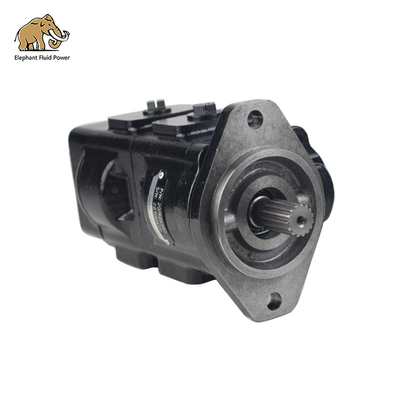

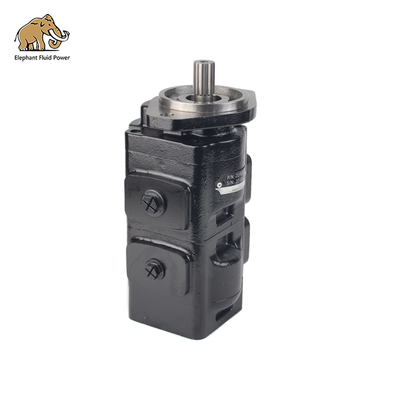

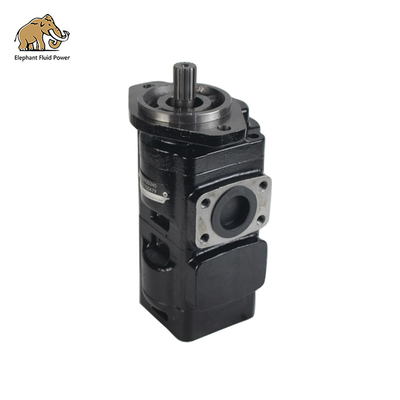

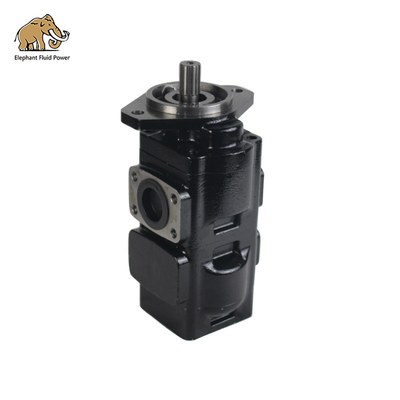

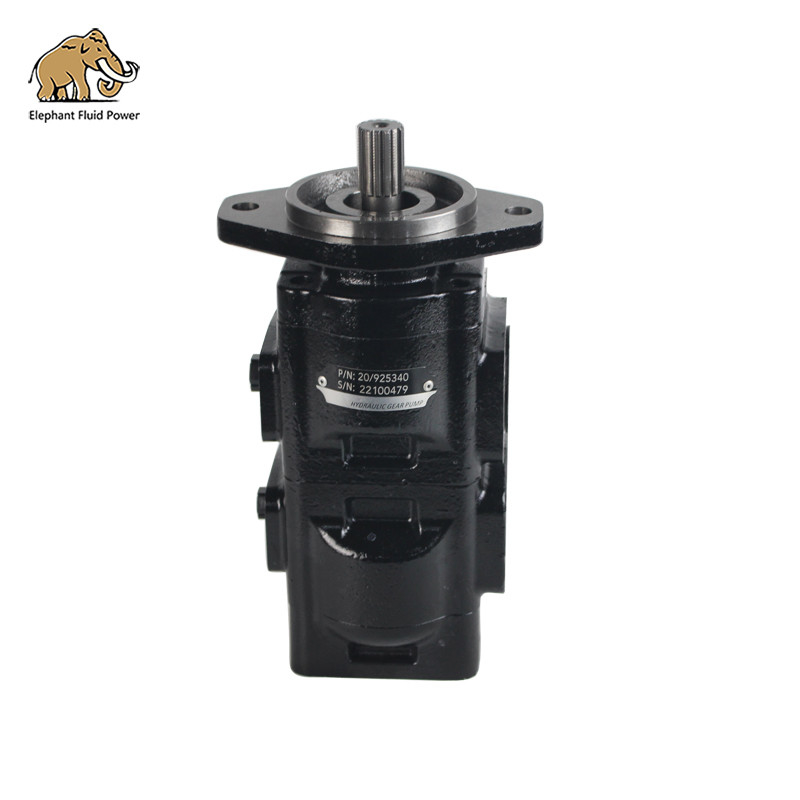

Replacement Hydraulic Pump twin 3CX JCB /Parker 20/925340 repair

Key Information

• Rotation: Clockwise (looking from shaft end)
• 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
• SAE B 2 hole mounting flange
• Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
• Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
• Single 2” SAE flange inlet
• Front pump outlet: 1 1/16”-12 UNF threaded
• Rear pump outlet: 7/8”-14 UNF threaded
• Maximum working pressure on front pump: 250 bar
• Maximum working pressure on rear pump: 275 bar
• Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

• 20/925340 - 7029120005

Weight

• 26KG
