Product Details:
|
| Product: | Hydraulic Pump | Model No.: | 333/G5390 |
|---|---|---|---|
| Condition: | Brand New | Quality: | Parker JCB OEM Compatible |
| Warranty: | 12 Months | Suit: | JCB |
| Lead Time: | 10 Days | Size: | 36 + 29 CC/REV |
| Rotation: | Clockwise | Weight: | 26 Kgs |
| Highlight: | 333/G5390 JCB Hydraulic pump,3CX JCB Hydraulic pump,4CX JCB Hydraulic pump |
||
From China we manufacture and export hydraulic gear pumps for JCB
Quick View:

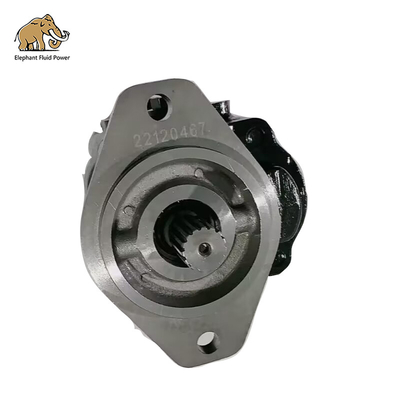

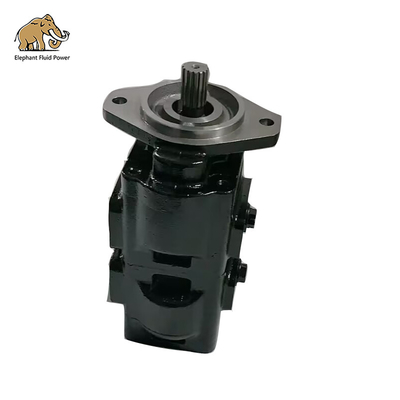

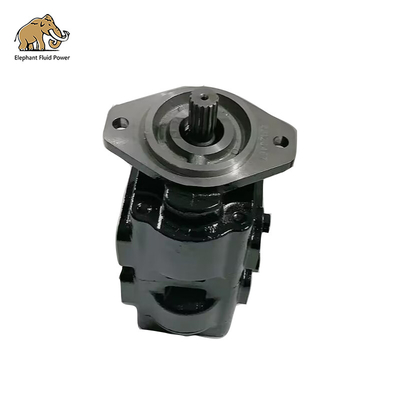

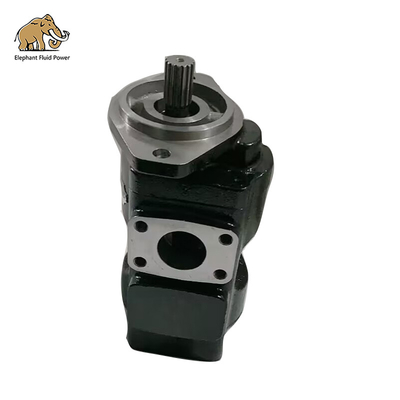

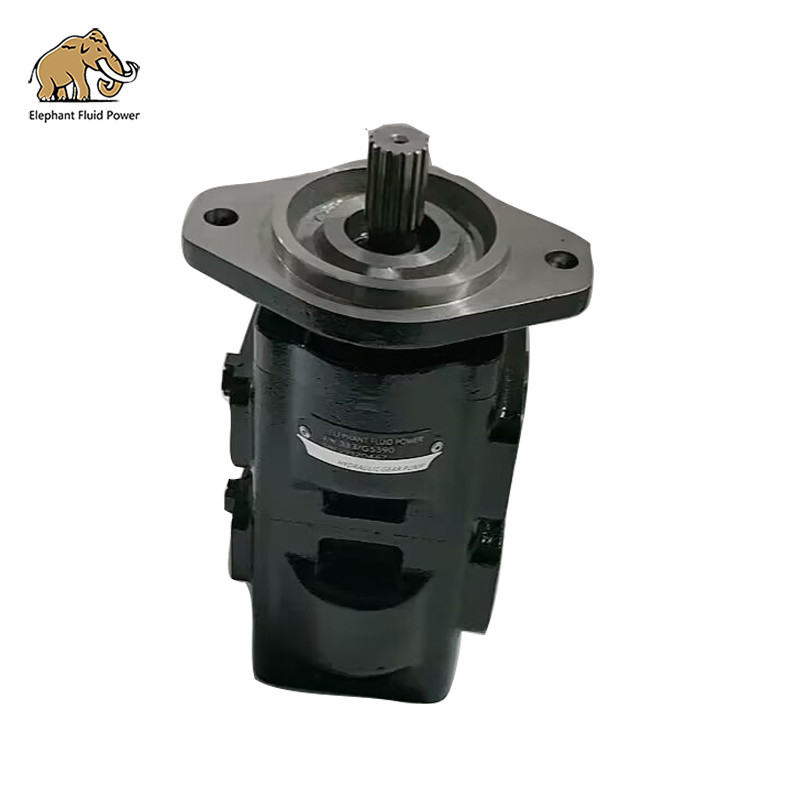

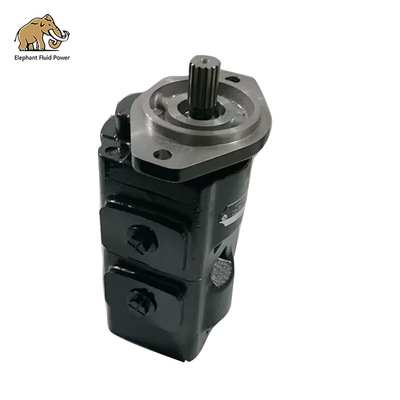

333/G5390 Genuine Parker / JCB replace Twin Hydraulic Pump for 3CX, 36 + 29 CC/REV
Key Information
Rotation: Clockwise (looking from shaft end)
1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
SAE B 2 hole mounting flange
Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 1 1/16”-12 UNF threaded
Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
333/G5390
Weight
26KG
Machine Fitment
PUMP 36/2 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Easycontrol. 2WS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Direct Control. AWS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Easycontrol. AWS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Easycontrol. 2WS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Direct Control. AWS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Sideshift. Direct Control. 2WS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Easycontrol. AWS 9822/0650
PUMP/MOTOR INSTALLATION ASSEMBLIES GEAR PUMP 36/29CCR Centremount. Direct Control. 2WS 9822/0650
PUMPS GEAR 36/29ccr 3CXD14M2NM TIER 2 9822/0835
PUMPS GEAR 36/29ccr 3CXD14M3NM TIER 3 9822/0835
Features:
1. The appearance, size and function are the same as Parker/JCB
2. Excellent quality
3. Reasonable price
4. Many models, fast delivery
5, 12 warranty
If you are a user, please find product information on this page, if you need more information please contact us
If you are a reseller, please contact us to discuss how we can work together
Related JCB Pump: 1 stage, 2 stage, 3 stage
More JCB parts available by us:
JCB hydraulic gear pump
JCB hydraulic piston pump
JCB hydraulic steering unit
JCB swichs
Reference modle numbers we have:
| Stock condition | ||
| OEM PART NUMBER | ||
| JCB | 332/F9030 | ready stock |
| 20/925580 | ||
| 7029120047 | ||
| JCB | ready stock | |
| 333/G5390 | ||
| 332/G7135 | ||
| JCB | ready stock | |
| 332/F9032 | ||
| JCB | 332/F9029 | ready stock |
| 20/925579 | ||
| 20/925339 | ||
| 20/925338 | ||
| JCB | 332/F9031 | ready stock |
| 20/925581 | ||
| 333/G5391 | ||
| JCB | 20/925340 | ready stock |
| 7029120005 | ||
| JCB | ready stock | |
| 20/925341 | ||
| JCB | 20/925366 | ready stock |
| 220/925586 | ||
| 333/C5234 | ||
| 333/G5392 | ||
| JCB | ready stock | |
| 20/925337 | ||
| JCB | 20/925578 | ready stock |
| 20/925586 | ||
| 332/F9028 | ||
| JCB | 20/912800 | ready stock |
| 20/903100 | ||
| 20/902900 | ||
| JCB | 20/903200 | ready stock |
| 20/911200 | ||
| JCB | ready stock | |
| 20/902900 | ||
| JCB | ready stock | |
| 20/903000 | ||
| JCB | 20/903300 | ready stock |
| 4074 | ||
| JCB | 20/925592 | ready stock |
| 20/925357 | ||
| JCB | 7049520006 | ready stock |
| 332/E6671 | ||
| JCB | ready stock | |
| 919/75002 | ||
| JCB | ready stock | |
| 20/925732 | ||
| JCB | 20/925588 | ready stock |
| 20/925356 | ||
| 7029530002 | ||
| JCB | 20/925591 | ready stock |
| 20/918300 | ||
| JCB | 701/21202 | ready stock |
| 701/80297 | ||
| JCB | 701 37702 701/26402 |
ready stock |
| 701/70001 | ||
| JCB | 701/29802 | ready stock |
| 701/55000 | ||
| JCB | 701/80355 | ready stock |
| 701/44200 | ||
| JCB | 701/27700 | ready stock |
| 701/52701 | ||
| JCB | 701/80299 | ready stock |
| 701/80296 | ||
| JCB | 701/80297 | ready stock |
| 701/80298 | ||
| JCB | 701/52601 701/46601 |
ready stock |
| 701/80145 | ||
| JCB | 701/21201 | ready stock |
| 701/80165 | ||
| JCB | 701/55100 | ready stock |
| 701/80295 | ||
| JCB | 701/26401 | ready stock |
| 701/80144 | ||
| JCB | 701/80300 | ready stock |
| 04/801301 | ||
| JCB | 475 /51090 | ready stock |
| MN234956 |
Who we work with?
JCB distributors, users
Parker distributors, users
Backhole Manufacturers
Backhole service providers
Backhole Spare parts Distributors
About Us:
From China, we design and manufacture hydraulic parts to CAATer for heavy duty appliCAATions and their reputation for quality and reliability is second to none. We manufacture and stock hydraulic parts for machine build, assembly, refurbishment, repair, maintenance and service.
If you send request list, we will quote.
