20/911200 Genuine Parker JCB 3CX Twin Hydraulic Pump replacement 41 + 29 CC/REV

From China we manufacture and export hydraulic gear pumps for JCB

JCB Construction Equipment Aftermarket Replacement Spare Parts

Quick View:

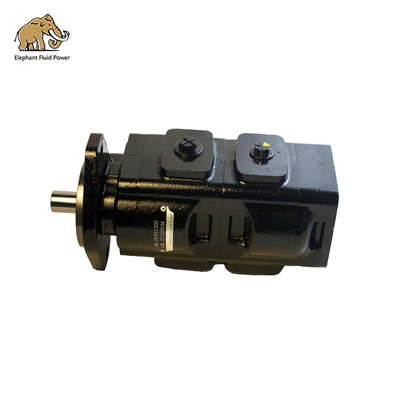

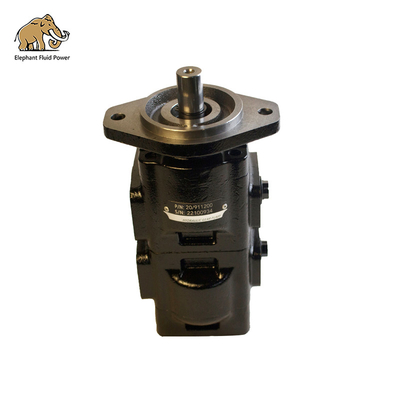

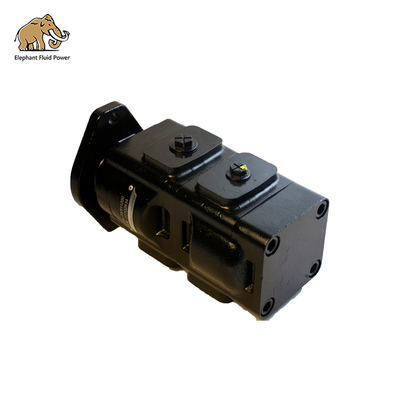

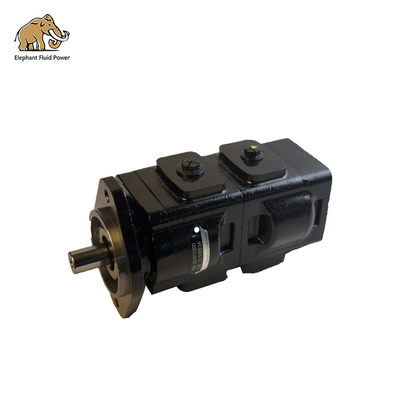

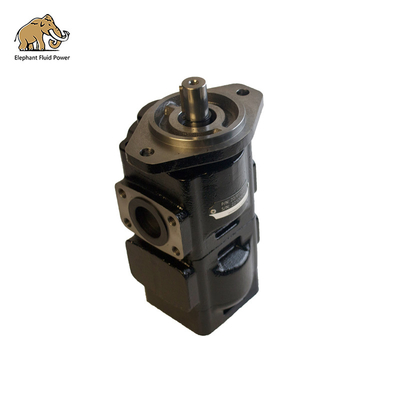

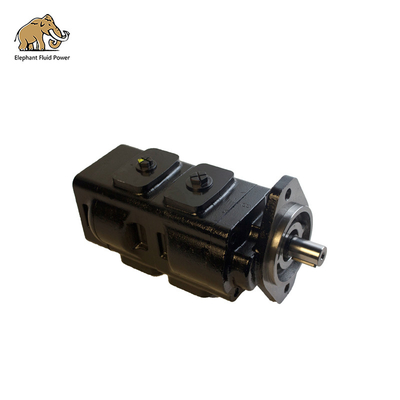

20/911200 Genuine Parker / JCB Hydraulic Pump replacement, size 41 + 29 CC/REV

Key Information:
Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 220 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

20/911200 - 7441 - 4071 - 20/903200

Weight

26KG

Machine Fitment

PUMP, MAIN HYDRAULIC CODE 4070 3CXSM Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 4070 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 4070 3CX PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 4070 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 4070 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 4070 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 4070 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC M410293 3CXHM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXSM 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXHM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CX 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXT 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC 3CX 9802/9700
PUMP, MAIN HYDRAULIC M410293 3CXSM 35 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 20 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC M410293 3CXT 30 Sideshift 9802/9600
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 3CX4M Military 9802/9759
PUMP, MAIN HYDRAULIC CODE 7441 3CXC PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 7441 3CX Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 7441 3CX (CM) Centremount AA AB Engine 9802/9720
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM-4T PC Centremount Servo AR/AK Engine 9802/9780
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM-4T Centremount AR AK Engine 9802/9760
PUMP, MAIN HYDRAULIC CODE 7441 3CXSM Sideshift AR AK Engine 9802/9750
PUMP, MAIN HYDRAULIC CODE 7441 4CXM Military 9802/9739
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 4CX444 PC Sideshift Servo AR/AK Engine 9802/9770
PUMP, MAIN HYDRAULIC CODE 7441 GEAR PUMP 4CXSM444 Sideshift AA AB Engine 9802/9730
PUMP, MAIN HYDRAULIC CODE 7441 3CX444 SUPER Sideshift AR AK Engine 9802/9750

Features:

1. The appearance, size and function are the same as Parker/JCB
2. Excellent quality
3. Reasonable price
4. Many models, fast delivery
5, 12 warranty

If you are a user, please find product information on this page, if you need more information please contact us
If you are a reseller, please contact us to discuss how we can work together

Related JCB Pump: 1 stage, 2 stage, 3 stage


More JCB parts available by us:

JCB hydraulic gear pump

JCB hydraulic piston pump

JCB hydraulic steering unit

JCB swichs

 Reference modle numbers we have:

Who we work with?
JCB distributors, users
Parker distributors, users

Backhole Manufacturers
Backhole service providers
Backhole Spare parts Distributors

About Us:
From China, we design and manufacture hydraulic parts to CAATer for heavy duty appliCAATions and their reputation for quality and reliability is second to none. We manufacture and stock hydraulic parts for machine build, assembly, refurbishment, repair, maintenance and service.

If you send request list, we will quote.
