332/F9029 for Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

From China we manufacture and export hydraulic gear pumps for JCB

JCB Construction Equipment Aftermarket Replacement Spare Parts

Quick View:

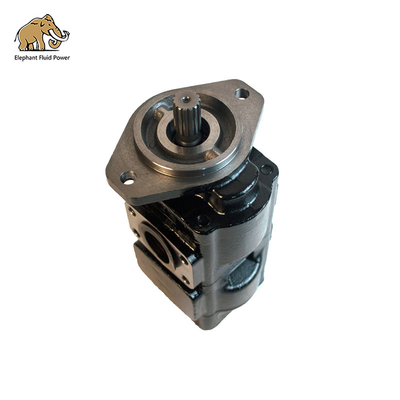

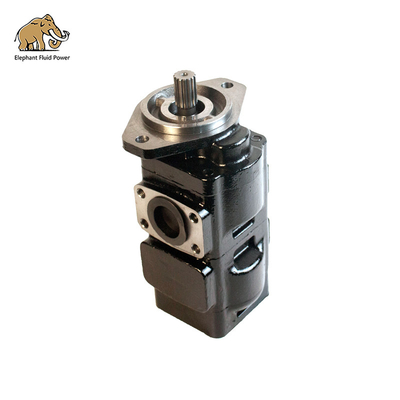

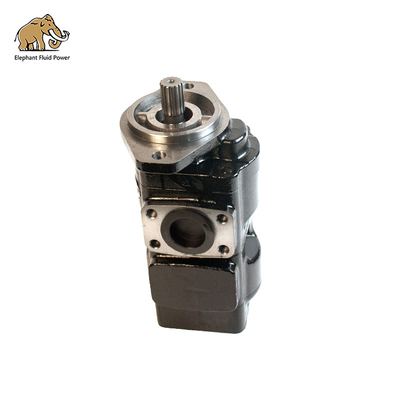

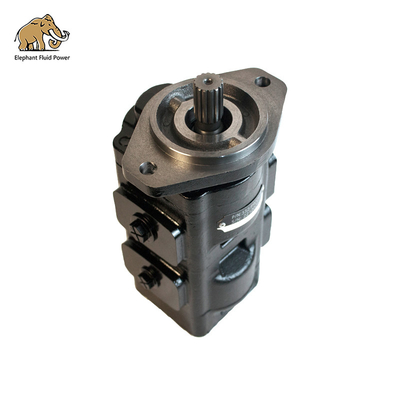

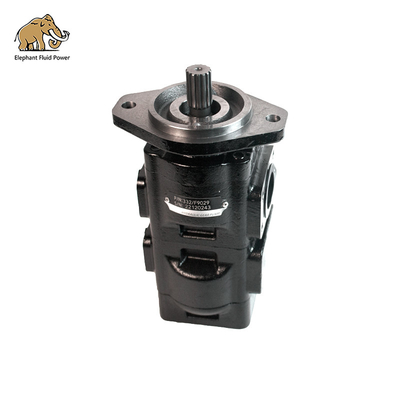

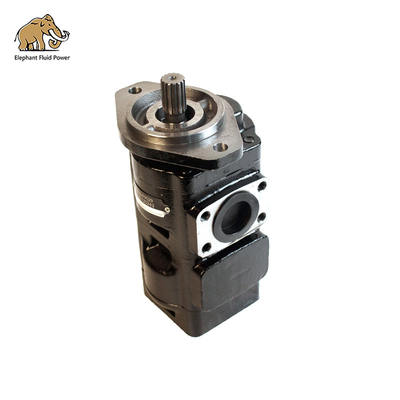

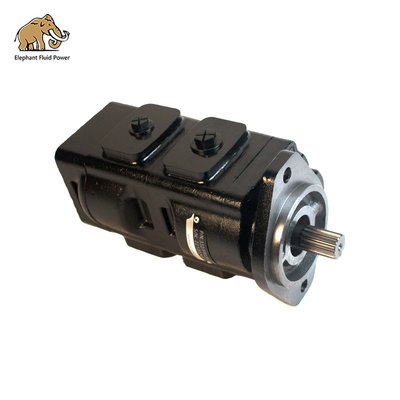

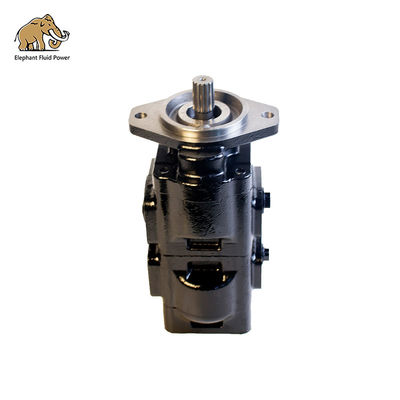

332/F9029 Genuine Parker / JCB Hydraulic Pump replacement, size 36 + 26 CC/REV

Key Information
Rotation: Clockwise (looking from shaft end)
1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
SAE B 2 hole mounting flange
Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 250 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers
20/925339 - 20/925579 - 332/F9029

Weight
26KG

Machine Fitment
PUMP 36/26 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX MANUAL Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM MANUAL Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER P/S Sideshift 9802/9800
PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER MAN Sideshift 9802/9800
PUMP 36/26 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010

Features:

1. The appearance, size and function are the same as Parker/JCB
2. Excellent quality
3. Reasonable price
4. Many models, fast delivery
5, 12 warranty

If you are a user, please find product information on this page, if you need more information please contact us
If you are a reseller, please contact us to discuss how we can work together

Related JCB Pump: 1 stage, 2 stage, 3 stage


More JCB parts available by us:

JCB hydraulic gear pump

JCB hydraulic piston pump

JCB hydraulic steering unit

JCB swichs

 Reference modle numbers we have:

Who we work with?
JCB distributors, users
Parker distributors, users

Backhole Manufacturers
Backhole service providers
Backhole Spare parts Distributors

About Us:
From China, we design and manufacture hydraulic parts to CAATer for heavy duty appliCAATions and their reputation for quality and reliability is second to none. We manufacture and stock hydraulic parts for machine build, assembly, refurbishment, repair, maintenance and service.

If you send request list, we will quote.
