Product Details:
|
| Advantage: | Good Quality And Delivery Fast | Compatible: | 100% Replacement For Original |
|---|---|---|---|
| Lead Time: | 7 Days | Price: | Competitive Price |
| Material: | Cast Iron | AppliCAATion: | Construction Machine Repair |
| Highlight: | A4VG180 Axial Piston Variable Pump,Factory Price Axial Piston Variable Pump,OEM Quality Axial Piston Variable Pump |
||

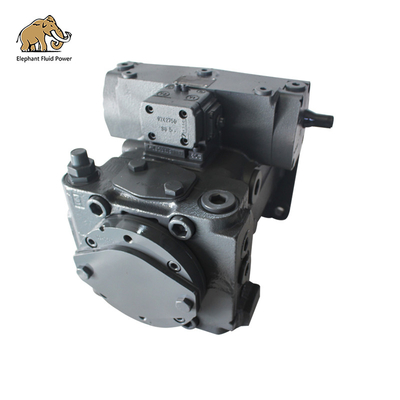

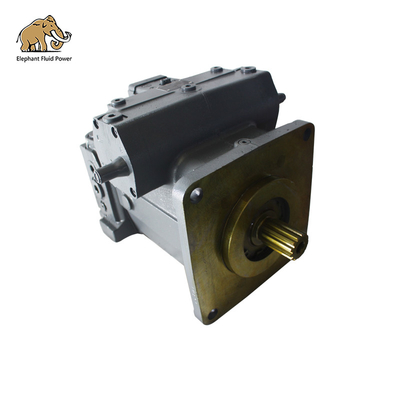

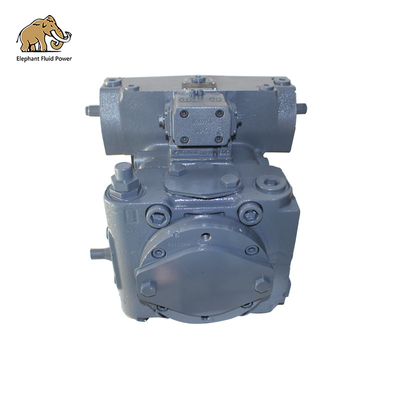

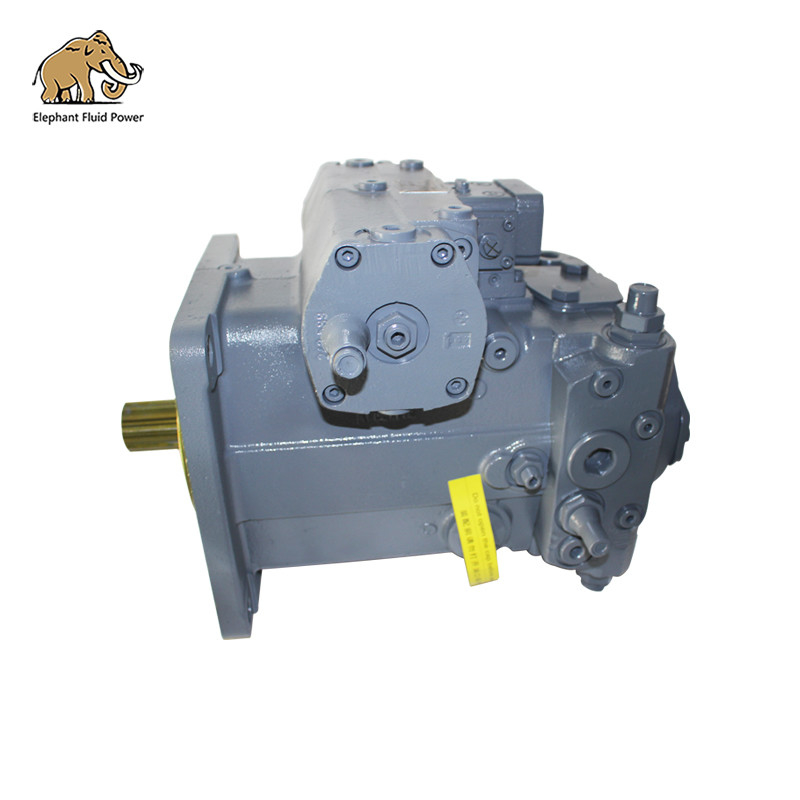

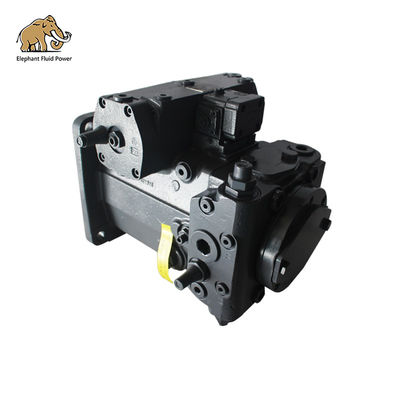

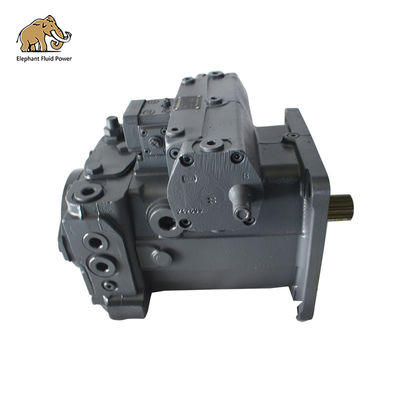

Factory Price OEM Quality A4VG180 Axial Piston Variable Pump Replacement
Elephant fluid power makes Factory Price OEM Quality A4VG180 Axial Piston Variable Pump Replacement,good quality ,competitive price,fast lead time,one year warranty since sales,is your best choice for hydraulic pump replacement.
Technical data:
A4VG series products are widely used in Putzmeister, JunJin pump truck production, maintenance, renovation and other industries to every corner of the world,is your best choice for original products replacement.
| Size | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 | |||
| Displacement | variable pump | Vgmax | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 |
| boost pump (at p = 20 bar) | VgSp | cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | 52.5 | |
| Speed | maximum at Vgmax | nmaxcontinuous | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | 2400 |
| limited maximum | nmax limited | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | 2600 | |
| intermittent maximum | nmax interm. | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | 2700 | |
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Flow | at nmax continuous and Vg max | qv max | l/min | 119 | 160 | 202 | 234 | 275 | 356 | 450 | 600 |
| Power | at nmax continuous and Vg max p = 400 bar | Pmax | kW | 79 | 107 | 134 | 156 | 183 | 237 | 300 | 400 |
| Torque at Vg max |
p = 400 bar | Tmax | Nm | 178 | 255 | 356 | 451 | 572 | 795 | 1144 | 1590 |
| p = 100 bar | T | Nm | 44.5 | 63.5 | 89 | 112.8 | 143 | 198.8 | 286 | 398 | |
| Moment of inertia (of the turning parts) | J | kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | 0.0983 | |
| Angular acceleration, max. | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | 6700 | ||
| Speed variation, max. | rpm | 103 | 81 | 72 | 69 | 64 | 55 | 50 | 34 | ||
| Rotary stiffness | shaft end S | Nm/rad | 31400 | 69000 | 80800 | 98800 | 158100 | 218300 | 244500 | 354500 | |
| shaft end T | Nm/rad | - | - | 95000 | 120900 | - | 252100 | 318400 | 534300 | ||
| shaft end A | Nm/rad | - | 79600 | 95800 | 142400 | 176800 | 256500 | - | - | ||
| shaft end Z | Nm/rad | 32800 | 67500 | 78800 | 122800 | 137000 | 223700 | 319600 | 624200 | ||
| shaft end U | Nm/rad | 50800 | - | - | 107600 | - | - | - | - | ||
| Filling capacity | V | L | 0.9 | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | 3.1 | 6.3 | |
| Weight approx.(without through drive) | m | kg | 29 | 31 | 38 | 50 | 60 | 80 | 101 | 156 | |
Elephant is a manufacturer of hydraulic pumps,hydraulic motors and pump parts,we win a good reputation and market based on our quality and services,oem quality,competitive price,fast lead time,one year warranty,and export our products to more than 80 countries and aereas.
Our main products models are as followings:
| Rexroth | A2F12/23/28/55/80/107/160/200/225/250/335/500 |
| A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500 | |
| A7V28/55/80/107/160/225/250/355/500/1000 | |
| A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500 | |
| A4VSO45/71/125/180/250/500/1000 | |
| A4V40/56/71 | |
| A4VG28/40/45/50/56/71/90/125/140/180/250 | |
| A4VTG71/90 | |
| A10VSO10/16/18/28/45/63/71/85/100/140 | |
| A10VG18/28/45/63 | |
| A11VO60/75/95/130/145/160/190/250/260 | |
| Kawasaki | K3SP36C |
| K3V63DT/112DT/140DT/180DT/280DT | |
| K3VL28/45/60/80/112/140/200 | |
| K3VG63/112/180/280 | |
| K7V63/100 | |
| K7VG180/265 | |
| K5V80/140/160/200 | |
| NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270 | |
| NX15 | |
| NVK45 | |
| KVC925/930/932 | |
| M2X55/63/96/120/128/146/150/170/210 | |
| M5X130/150/173/180/500 | |
| MX50/80/150/173/200/250/450/500/530/750 | |
| KAYABA | MAG150/170 |
| KYB87 | |
| MSG18P/27P/44P/50P | |
| MSF series | |
| Komatsuu | HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650 |
| Libherr | LPVD 35/45/64/75/90/100/125/140/165/225/250 |
| FMV075/100 | |
| LMF(V)45/64/75/90/100/125/140 | |
| Toshiba | PVB80/92 |
| PVC80/90 | |
| SG 015/02/025/04/08/12/15/17/20/25 | |
| Linder | HPV55/75/105/135/165/210/280 |
| HPR75/90/100/130/160 | |
| MPR28/45/63/71 | |
| HMR75/105/135/165 | |
| HMF28/35/50/ | |
| BPV35/50/70/100/200 | |
| B2PV35/50/75/105/140/186 | |
| BMF35/55/75/105/140/186/260 | |
| BMV35/55/75/105/135 | |
| BPR55/75/105/140/186/260 | |
| Sauer | PV90R(L)(M)030/42/55/75/100/130/180/250 |
| PV42-28/41/51 | |
| SPV15/18 | |
| KRR(LRR)025C/030D/038C/045D | |
| MR(MS)070/089/227/334 | |
| Eaton | 3321/3331 |
| 4621/4631 | |
| 5421/5431 | |
| 78461/78462 | |
| Vicker | PVE12/21/45 |
| TA19/MFE19 | |
| PVM 018/020/045/050/057/063/074/081/098/106/131/141 | |
| PVH 57/74/98/131/141 | |
| PVB 5/6/10/15/20/29/45/90 | |
| Yuken | A10/16/22/37/40/45/56/70/90/100/125/145/220 |
| A3H16/37/56/71/100/145/180 | |
| Parker | PVP16/23/33/41/48/60/76/100/140 |
| PV 016/020/023/028/032/040/046/063/080/092/140/180/270 | |
| P2/3-060/075/105/145 | |
| PAVC 33/38/65/100 | |
| Hitachi | HPV050/102/105/118/135 |
| HMGC16/32/48 | |
| HMGF35/36/38/57 | |
| Tokiwa | MKV23/33 |
| Uchida | A10VD17/23/28/40/43/71 |
| AP2D12/14/18/21/25/28/36/38/42 | |
| A8VO55/59/80/86/107/115/172 | |
| Nachi | YC35-6 |
| PVD-2B-32/34/36/38/40/42/45/50 | |
| PVD-3B-54/56/60/66 | |
| PZ-6B-180/220 | |
| PVK-2B-50/505 | |
| PZ-4B-100 | |
| PVD-00B-14/16P | |
| PVD-1B-23/28/32/34 | |
| Hawe | V30D95/140/250 |
| V60 | |
| Italy Sam | HCV50/70/90/100/125 |
| H1V55/75/108/160/226 | |
| H2V55/75/108/160/226 | |
| H1C55/75/108/1 |
Elephant Fluid Power has more than 20 years of hydraulic production and maintenance history. With its own professionalism, excellent product quality, fast delivery time, and good after-sales service, we have customers in more than 80 countries and regions in the world. We care about customers, develop together with customers, make profits together, and create the best tomorrow in the hydraulic industry togethe.
