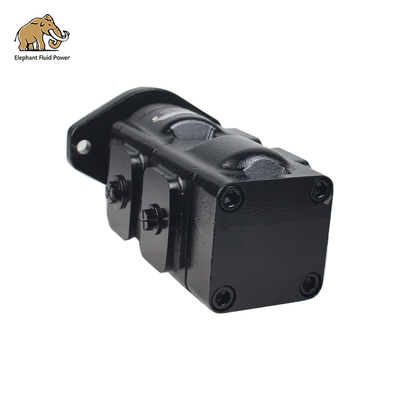

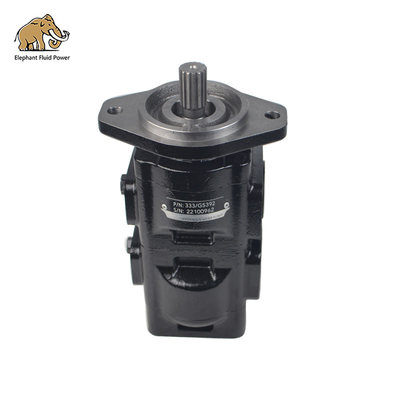

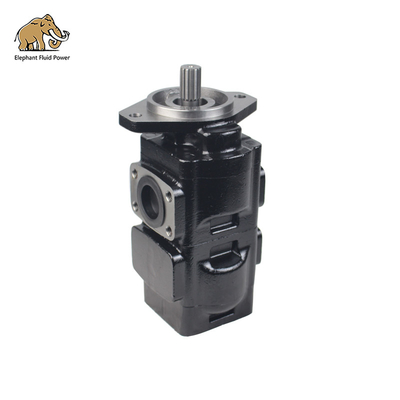

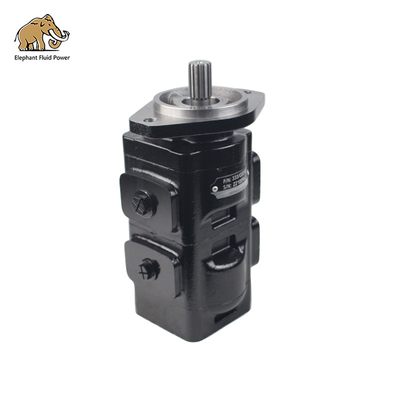

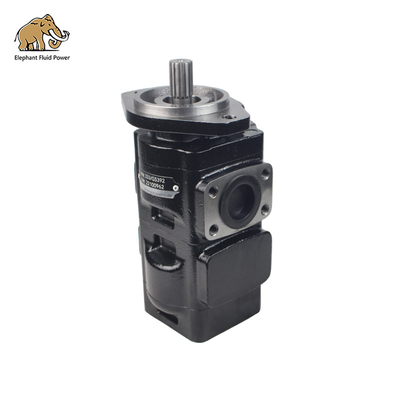

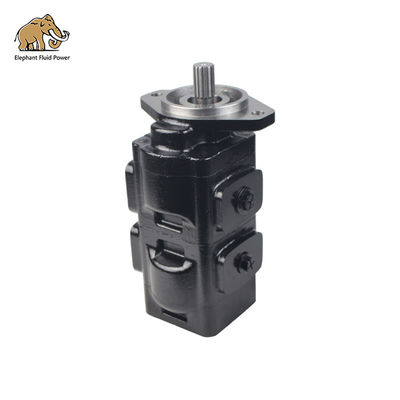

JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality

Elephant Fluid Power makes JCB 333/G5392 Hydraulic Gear Pump For 3cx 4cx Backhoe Loader Factory Sales Good Quality,equivalent quality as original,competitive price,fast lead time,one year warranty since sales.

• Rotation: Clockwise (looking from shaft end)
• 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
• SAE B 2 hole mounting flange
• Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
• Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
• Single 2” SAE flange inlet
• Front pump outlet: 1 1/16”-12 UNF threaded
• Rear pump outlet: 7/8”-14 UNF threaded
• Maximum working pressure on front pump: 275 bar
• Maximum working pressure on rear pump: 275 bar
• Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

• 220/925586 - 333/C5234 - 333/G5392

Weight

• 26KG
