Product Details:
|
| Material: | Cast Iron | Lead Time: | 7-10 Days |
|---|---|---|---|
| Warranty: | 12 Months | Application: | Hydraulic Repair Maintain |
| Technical: | 100% Interchange With Original | Services: | Good After-sales Services |
| Highlight: | Open Circuit Hydraulic Piston Pump,Axial Piston Hydraulic Piston Pump |
||

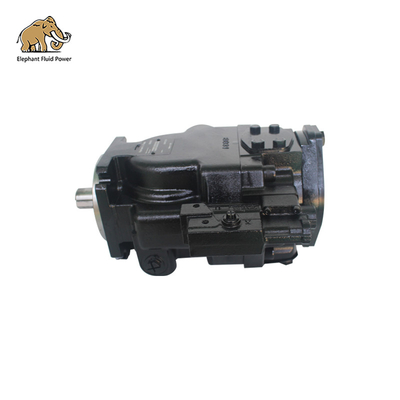

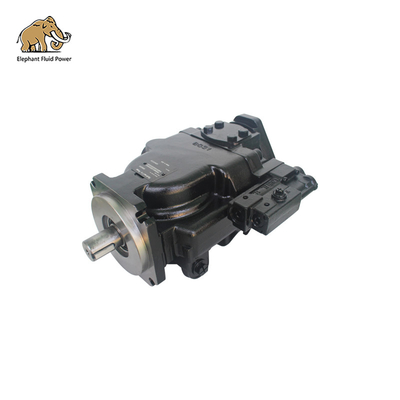

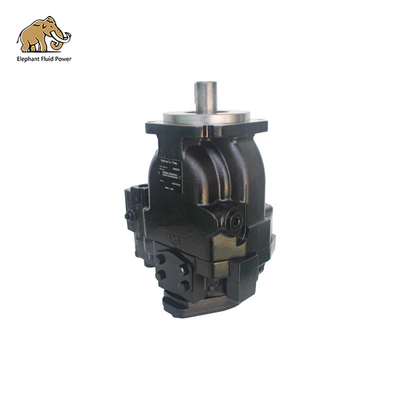

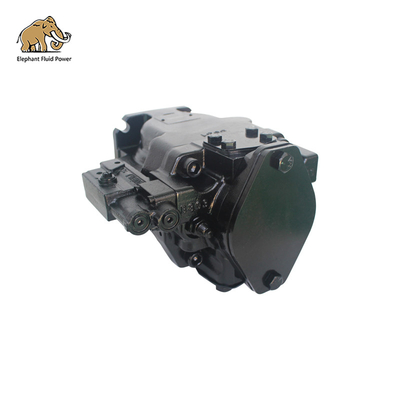

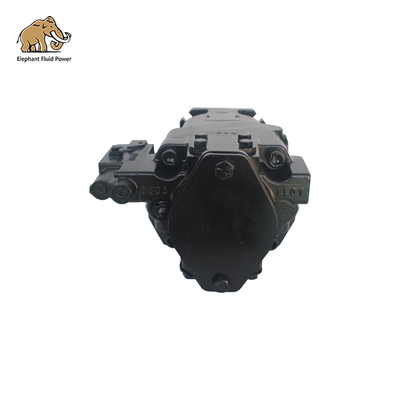

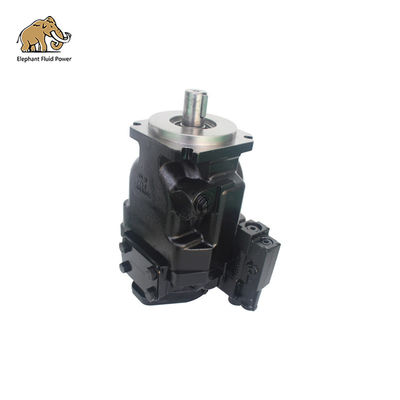

Hydraulic Piston Pump Axial Piston Open Circuit Pumps Sauer Dan Foss Series 45 Frr074 Frr090 Frl074 Frl090
Elephant Fluid Power Makes Hydraulic Piston Pump Axial Piston Open Circuit Pumps Sauer Dan Foss Series 45 Frr074 Frr090 Frl074 Frl090,
equivalent quality as original,competitive price,fast lead time,one year warranty.
Technical data:
| Technical specifications | ||||
| F | ||||
| Company | 074B | 090C | ||
| Maximum displacement | cm³[in³] | 74[4.52] | 90[5.49] | |
| Working speed | Minimum | min-1(rpm) | 500 | 500 |
| Continued | 2400 | 2200 | ||
| Maximum | 2800 | 2600 | ||
| Working pressure | Continued | bar [psi] | 310[4500] | 260[3770] |
| Maximum | 400[5800] | 350[5075] | ||
| Flow rate at rated speed (theoretical value) |
I/min [USgal/min] |
178 [46.9] |
198 [52.3] |
|
| Input torque at maximum displacement at 49°C[120°F] (theoretical value) | N*m/bar [lbf*in/1000 psi] |
1.178 [719.3] |
1.433 [874.8] |
|
| Moment of inertia of internal rotating components | kg*m2 [slug*ft²] |
0.0063 [0.00465] |
0.0065 [0.00479] |
|
| weight | Axial oil port | kg [lb] | 29.5[65.0] | |
| Radial oil port | 32.6[71.9] | |||
| Extemal load on the spindle | (Me) External torque |
N*m [lbf*in] | 300[2655] | 300[2655] |
| Axial force/push,pull | N [lbf] | 2900[652] | 2900[652] | |
| Installation flange load torque | Vibration (continuous) | N*m [lbf*in] | 3730 [33100] | |
| Impact (maximum value) |
13220 [117100] | |||
Our other sauer danfoss series pumps:
|
LRR025CLB2130NNN3C2BGA6NPLBNNNNNN
|
|
JRLS45BAF1310NNN3C3NHA8NNNNJJJNNN
|
|
FRL074BLS2820NNN3S1R2A1NAAANNNNNN
|
|
ERR100BLS2320NNN3K5NLA1N AAANNNNNN
|
|
90R130KA5BC80P4F1H03GBA353524
|
|
MPV046CB AKSB BBAAAB JJABUDDBNNN
|
|
MPT046CAVCBAABBAABDDBAAHHBDAABDDBAAHHBNNN***
|
|
90R075MB1BC80S3S1D03GBA353524
|
|
90M100 NC0N8N0F1W00NNN0000E6
|
|
90M100 NCON7 NOC7 WOO NNN0000G3
|
|
90R100LW5NN80L3C7EC5GBA42422483018643
|
|
ERR147PC20NNNNN3K5CPAAA
|
|
FRR090BLS2520NNN3S1B2A1NNNNNNNNNN
|
|
90L055MA1NN60S3C6D03GBA353520
|
|
JRLS51BBV32221 NNF3C2N9A8NNNNJJJNNN
|
|
JRRS51BBS3226 NNN3S1BAA2NNNNJJJNNN
|
|
JRRS75CLS1820NNN3K4CEA2NNNNJJJNNN
|
Elephant Fluid specializes in the manufacture, assembly, export, sales and service of various hydraulic pumps, hydraulic motors and hydraulic accessories. Elephant Fluid Power Technical team has many years of operation and service experience, Provide customers with professional hydraulic system solutions, Quality assurance of quality products.
We have many years in hydraulic system products, 1-7 days, fixed sales engineer , agreement specific delivery period , Years of industry experience, sales, repairs, commissioning, maintenance, Super fast one-stop professional service, Provide a technical response within 2 hours of the standard warranty, Effectively guarantee the quality of hydraulic products, Worry-free delivery time 1300 kinds in stock , One-stop service, directly with the manufacturer, Provide complete hydraulic system solutions, Comprehensive guidance to provide technical services within 1 working day, Rigorous processing and excellent quality.
We have over 20 years experience, so we could gather the best resources to our customers. And we have the best professional pre-sales and after-sales system in China. Most importantly, we can provide the products at competitive price with quality guaranteed and fast delivery.
We believe the science and technology always change the world. In the future, Elephant fluid power will strive to build an international first-class brand of enterprise, create contributions to society, create value for customers, and bring happiness to the employees.
Welcome to be our partners and friends.
