A2FM28 Rexroth Series 6 Axial Piston Fixed Motor

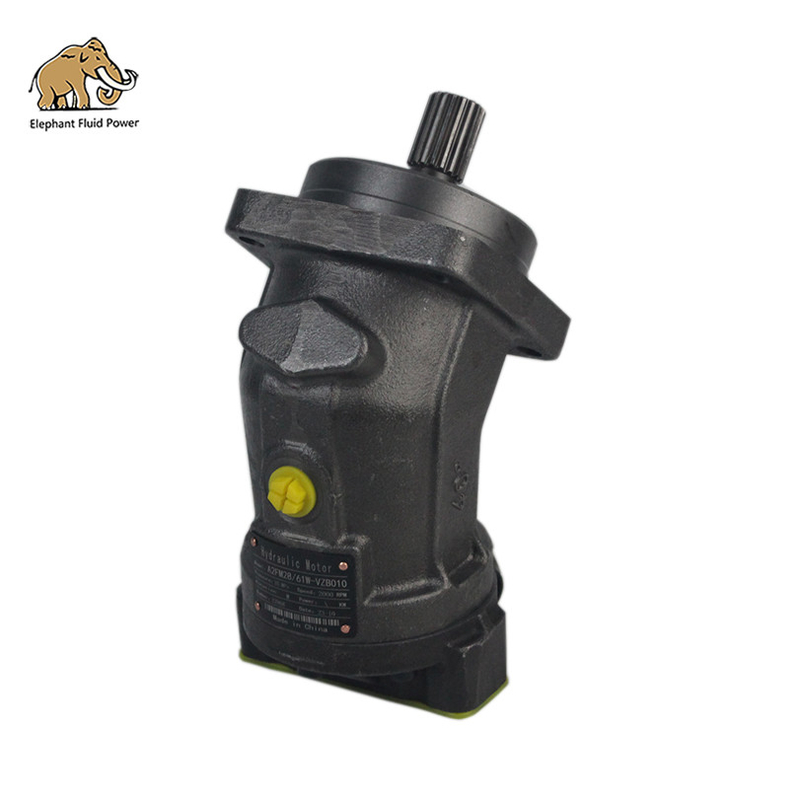

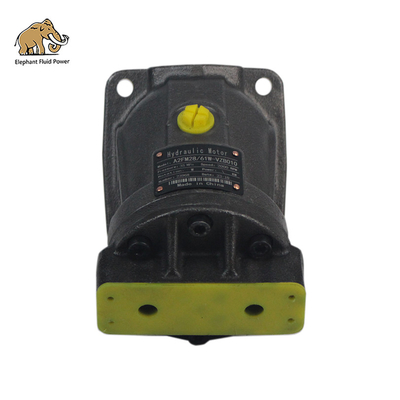

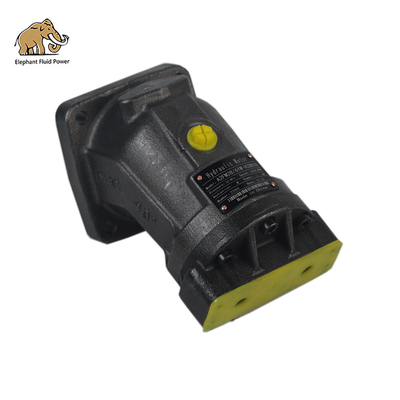

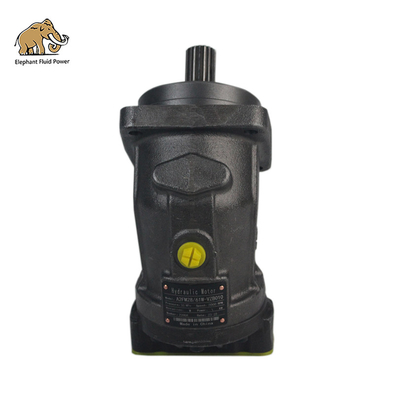

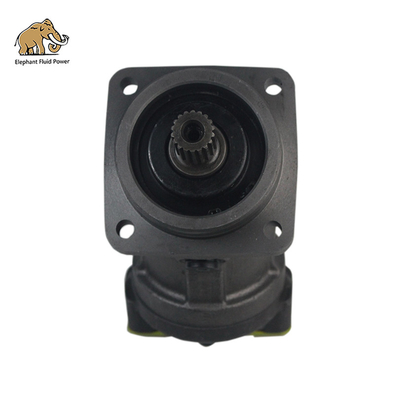

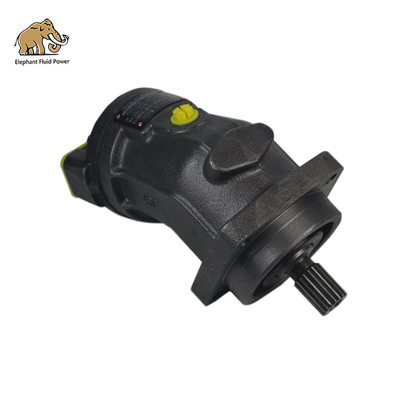

Large Image : A2FM28 Rexroth Series 6 Axial Piston Fixed Motor

Product Details:

Place of Origin:	China
Brand Name:	Elephant Fluid Power
Certification:	ISO9001,CE
Model Number:	A2FM28

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Carton box,wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, Western Union,Paypal,Alibaba
Supply Ability:	300 sets per month

Contact Now

A2FM28 Rexroth Series 6 Axial Piston Fixed Motor

Description

Material:	Cast Iron	Application:	Hydraulic Repair
Lead Time:	7-10 Days	Quality:	100% Replace With Original
Warranty:	1 Year	Packing:	Wooden Case
Highlight:	A2FM28 Axial Piston Fixed Motor , Rexroth Axial Piston Fixed Motor

A2FM28 Rexroth series 6 axial piston fixed motor

Elephant Fluid Power Co.,Ltd provides A2FM28 Rexroth series 6 axial piston fixed motor,good quality,competitive price,fast lead time,one year warranty,is your first choice for hydraulic motor replacement.

Technical data:

The A2FM is a fixed motor with an axial tapered piston rotary group with a bent-axis design for hydrostatic drives in open and closed circuits. In axial piston units with a bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate torque depending on the pressure.

High power density
Very high total efficiency
High starting efficiency
Robust 40° bent-axis technology

Size				5	10	12	16	23	28	32	107	125	160	180	200	250	355	500
Displacement geometric, per revolution		V_g	cm³	4.93	10.3	12	16	22.9	28.1	32	106.7	125	160.4	180	200	250	355	500
Nominal pressure		p_nom	bar	315	400	400	400	400	400	400	400	400	400	400	400	350	350	350
Maximum pressure		p_max	bar	350	450	450	450	450	450	450	450	450	450	450	450	400	400	400
Maximum speed		n_nom ¹⁾	rpm	10000	8000	8000	8000	6300	6300	6300	4000	4000	3600	3600	2750	2700	2240	2000
Maximum speed		n_max ²⁾	rpm	11000	8800	8800	8800	6900	6900	6900	4400	4400	4000	4000	3000
Inlet flow ³⁾	at n_nom	q_V	l/min	49	82	96	128	144	177	202	427	500	577	648	550	675	795	1000
Torque ⁴⁾	at p_nom	M	Nm	24.7	66	76	102	146	179	204	679	796	1021	1146	1273	1393	1978	2785
Rotary stiffness		c	kNm/rad	0.63	0.92	1.25	1.59	2.56	2.93	3.12	11.2	11.9	17.4	18.2	57.3	73.1	96.1	144
Moment of inertia for rotary group		J_TW	kg·m²	0.00006	0.0004	0.0004	0.0004	0.0012	0.0012	0.0012	0.0116	0.0116	0.022	0.022	0.0353	0.061	0.102	0.178
Maximum angular acceleration		ɑ	rad/s²	5000	5000	5000	5000	6500	6500	6500	4500	4500	3500	3500	11000	10000	8300	5500
Case volume		V	l		0.17	0.17	0.17	0.2	0.2	0.2	0.8	0.8	1.1	1.1	2.7	2.5	3.5	4.2
Weight (approx.)		m	kg	2.5	5.4	5.4	5.4	9.5	9.5	9.5	32	32	45	45	66	73	110	155

Elephant Fluid Power Co.,Ltd is a professional hydraulic pumps,hydraulic motors and pump parts manufacturer and exporter,our products have been exported to more than 80 countries and aereas,we win a good reputation among the world based on our quality and services.

Our main products models are as followings:

Rexroth	A2F12/23/28/55/80/107/160/200/225/250/335/500
	A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500
	A7V28/55/80/107/160/225/250/355/500/1000
	A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500
	A4VSO45/71/125/180/250/500/1000
	A4V40/56/71
	A4VG28/40/45/50/56/71/90/125/140/180/250
	A4VTG71/90
	A10VSO10/16/18/28/45/63/71/85/100/140
	A10VG18/28/45/63
	A11VO60/75/95/130/145/160/190/250/260

Kawasaki	K3SP36C
	K3V63DT/112DT/140DT/180DT/280DT
	K3VL28/45/60/80/112/140/200
	K3VG63/112/180/280
	K7V63/100
	K7VG180/265
	K5V80/140/160/200
	NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270
	NX15
	NVK45
	KVC925/930/932
	M2X55/63/96/120/128/146/150/170/210
	M5X130/150/173/180/500
	MX50/80/150/173/200/250/450/500/530/750

KAYABA	MAG150/170
	KYB87
	MSG18P/27P/44P/50P
	MSF series

Komatsuu	HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650

Libherr	LPVD 35/45/64/75/90/100/125/140/165/225/250
	FMV075/100
	LMF(V)45/64/75/90/100/125/140

Toshiba	PVB80/92
	PVC80/90
	SG 015/02/025/04/08/12/15/17/20/25

Linder	HPV55/75/105/135/165/210/280
	HPR75/90/100/130/160
	MPR28/45/63/71
	HMR75/105/135/165
	HMF28/35/50/
	BPV35/50/70/100/200
	B2PV35/50/75/105/140/186
	BMF35/55/75/105/140/186/260
	BMV35/55/75/105/135
	BPR55/75/105/140/186/260
Sauer	PV90R(L)(M)030/42/55/75/100/130/180/250
	PV42-28/41/51
	SPV15/18
	KRR(LRR)025C/030D/038C/045D
	MR(MS)070/089/227/334

Eaton	3321/3331
	4621/4631
	5421/5431
	78461/78462

Vicker	PVE12/21/45
	TA19/MFE19
	PVM 018/020/045/050/057/063/074/081/098/106/131/141
	PVH 57/74/98/131/141
	PVB 5/6/10/15/20/29/45/90

Yuken	A10/16/22/37/40/45/56/70/90/100/125/145/220
	A3H16/37/56/71/100/145/180

Parker	PVP16/23/33/41/48/60/76/100/140
	PV 016/020/023/028/032/040/046/063/080/092/140/180/270
	P2/3-060/075/105/145
	PAVC 33/38/65/100

Hitachi	HPV050/102/105/118/135
	HMGC16/32/48
	HMGF35/36/38/57

Tokiwa	MKV23/33

Uchida	A10VD17/23/28/40/43/71
	AP2D12/14/18/21/25/28/36/38/42
	A8VO55/59/80/86/107/115/172

Nachi	YC35-6
	PVD-2B-32/34/36/38/40/42/45/50
	PVD-3B-54/56/60/66
	PZ-6B-180/220
	PVK-2B-50/505
	PZ-4B-100
	PVD-00B-14/16P
	PVD-1B-23/28/32/34

Hawe	V30D95/140/250
	V60

Italy Sam	HCV50/70/90/100/125
	H1V55/75/108/160/226
	H2V55/75/108/160/226
	H1C55/75/108/1

Our Company:

Elephant Fluid Power Technical team has many years of operation and service experience,Provide customers with professional hydraulic system solutions,Quality assurance of quality products,We have many years of experience in purchasing and sales to prevent counterfeit and shoddy products,1-7 days, fixed sales engineer, agreement specific delivery period,Years of industry experience, sales, repairs, commissioning, maintenance,Super fast one-stop professional service,Provide technical response within 2 hours of standard warranty,Effectively guarantee the quality of hydraulic products,Worry-free delivery time 1300 kinds in stock,One-stop service, directly with the manufacturer,Provide complete hydraulic system solutions,Comprehensive guidance to provide technical services within 1 working day,Rigorous processing and excellent quality.

We are looking for good long business partner and friendship.

If you are interested in our products, please contact me, I will provide the best price support and quality service.I believe we will establish a good and long-term cooperation.
